DropX - Compact all-in-one device for laboratory analysis

DropX Analyst: The Ultimate Portable Assistant for IVF Laboratory Measurements

Optimise your IVF laboratory’s precision with the DropX Analyst, an all-in-one portable analyser specifically designed for the rigorous demands of IVF and ART environments. By integrating gas and temperature measurement into a single, high-performance device, the DropX Analyst eliminates the need for additional equipment investments.

Why Choose the DropX Analyst?

• All-Inclusive Measurement: A comprehensive solution featuring built-in CO₂, O₂, and temperature sensors, ensuring you have every essential tool at your fingertips without further costs.
• Unrivaled Accuracy: Equipped with highly sensitive PT-1000 sensors that are gold-coated to provide the highest possible precision for your critical laboratory readings.
• Patented Droplet Technology: Our unique Drop Probe allows you to measure droplet temperatures precisely without needing to hold the probe, removing the risk of heat transfer or human error.
• Designed for Portability: A lightweight (1150g) and durable aluminum device that acts as a true portable assistant for all your lab measurements.

Key Features

Advanced Gas Sensing

• CO2 Sensor: Provides rapid data reading at 20 times per second with a response time of less than 0.5 seconds for the first reading. It boasts a long lifespan of up to 10 years.
• O2 Sensor: Offers a quick 15-second response time and a reliable lifespan of 3 to 6 years.

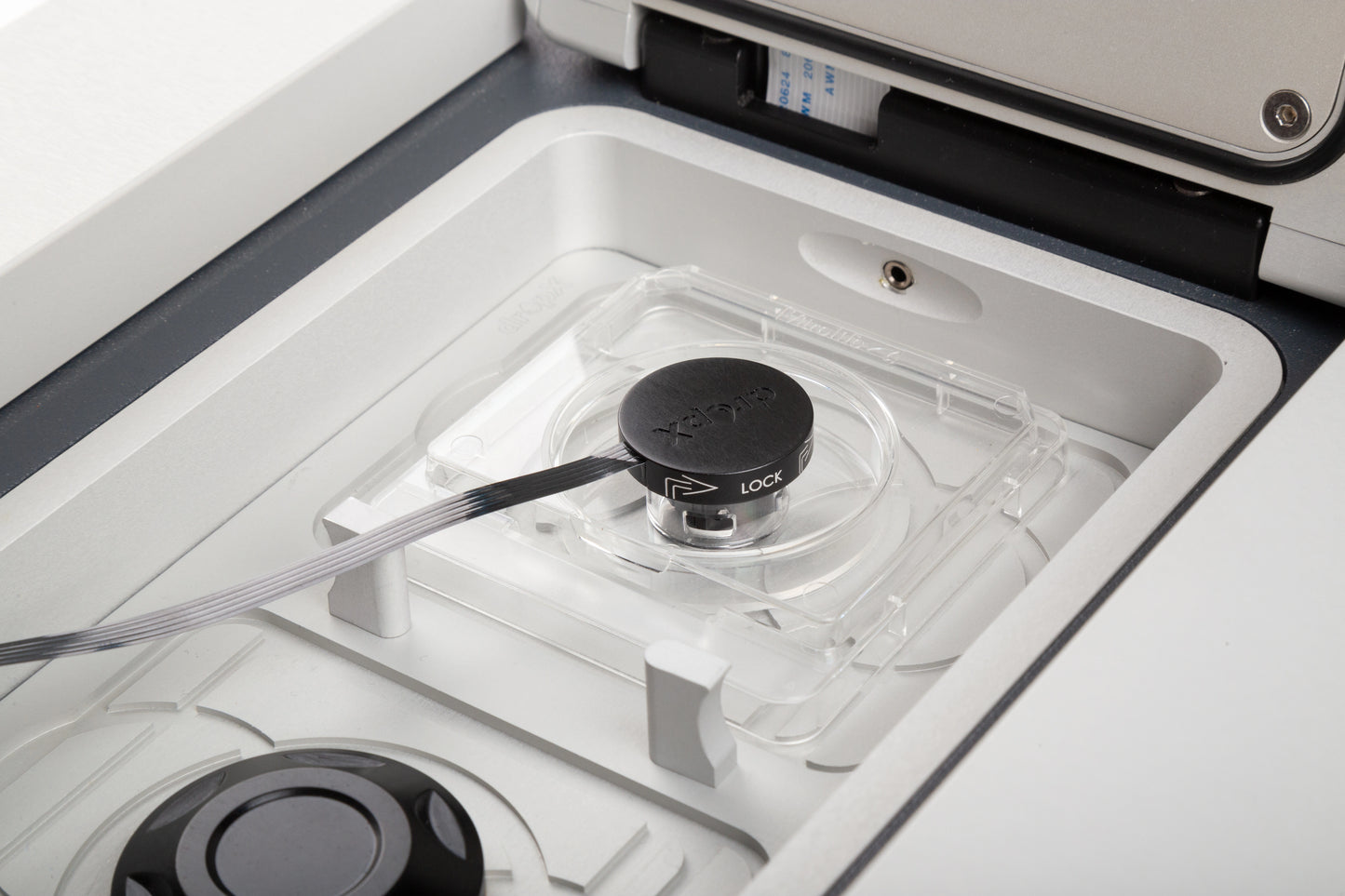

Precision Temperature Probes

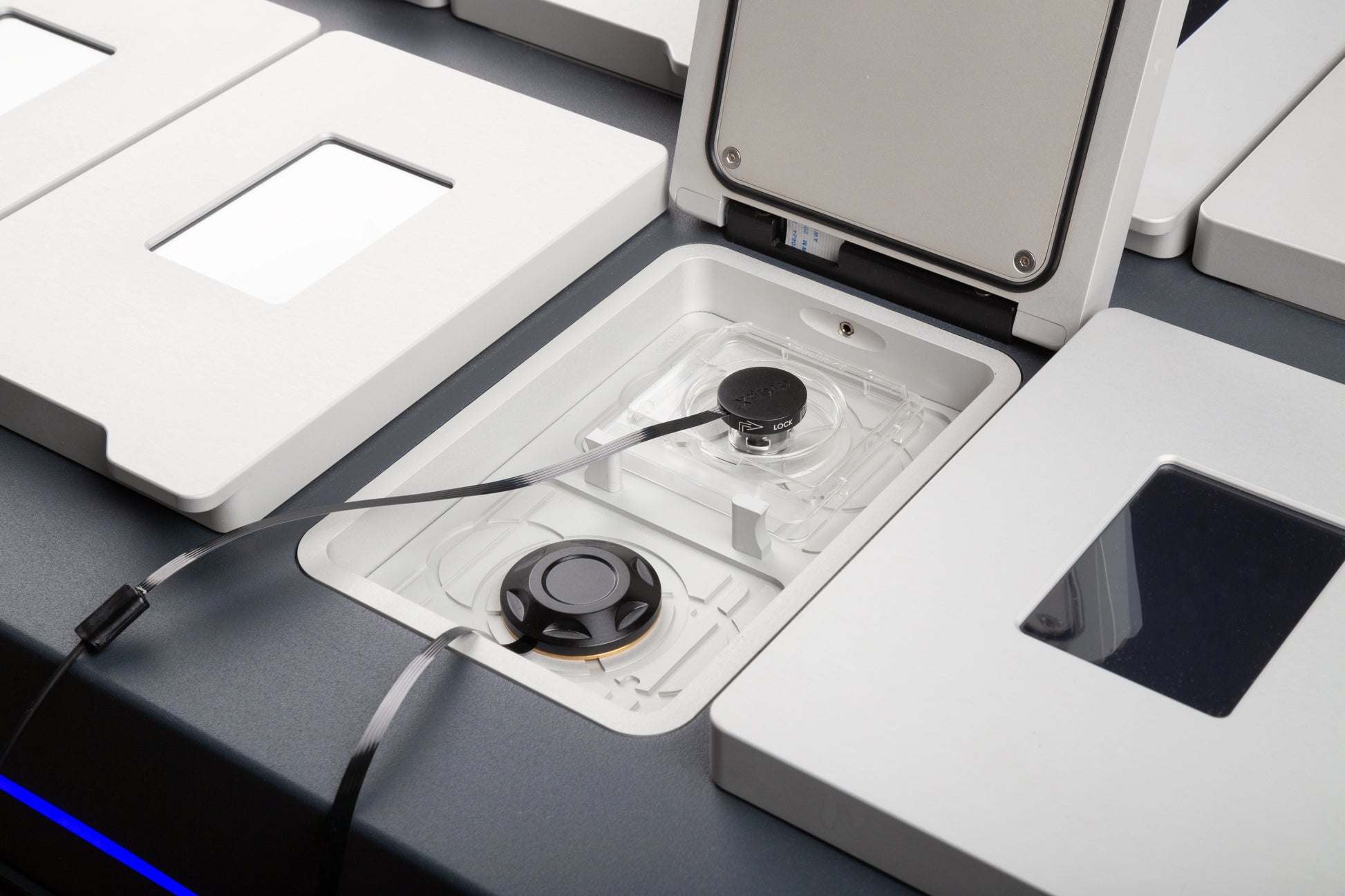

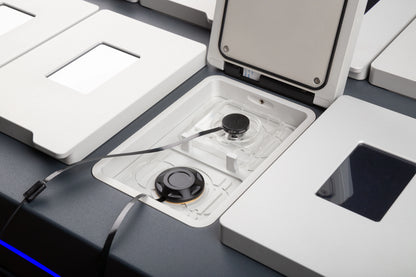

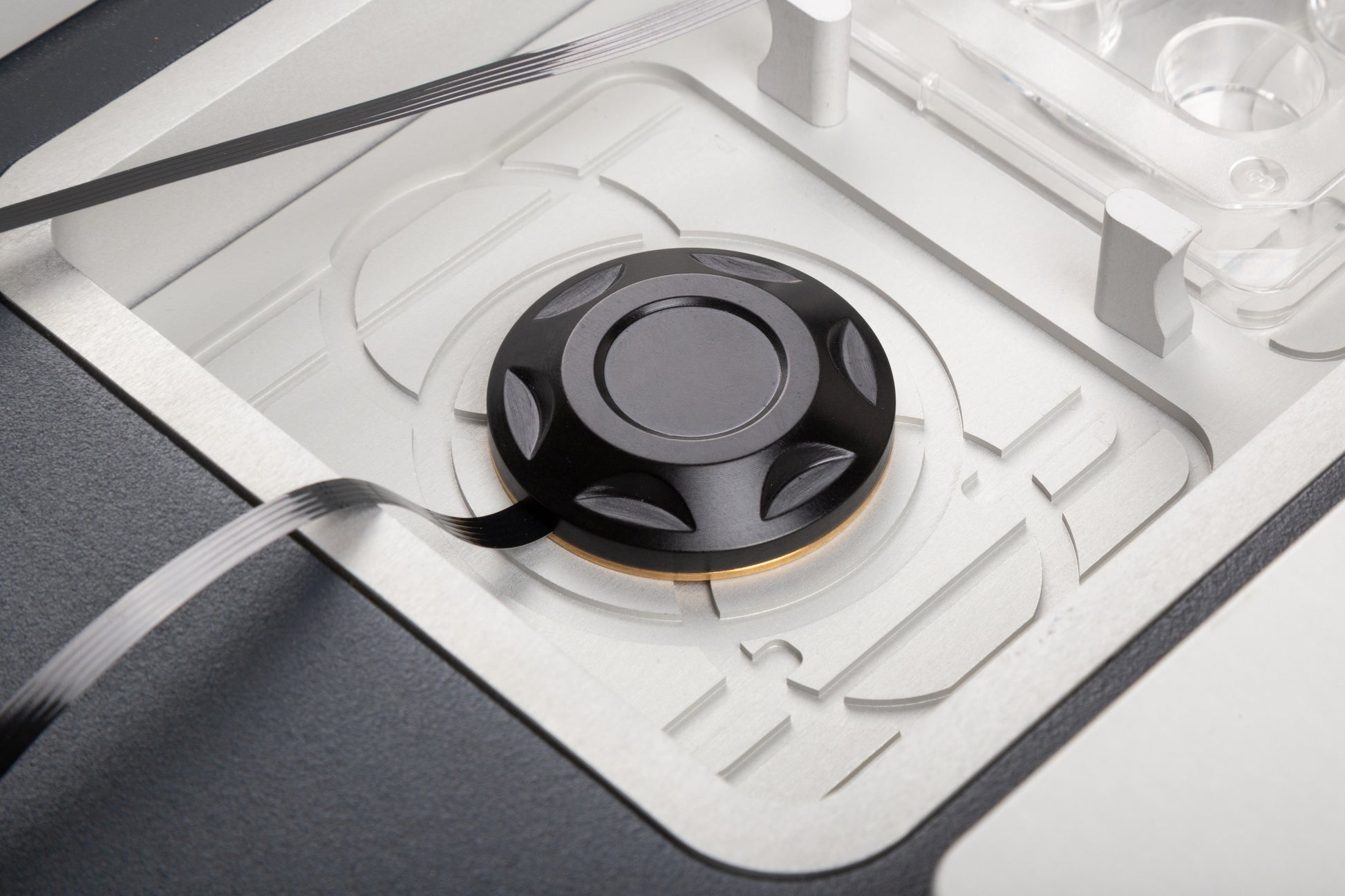

• Surface Probe: Features a gold-plated sensor for high-precision contact measurements.

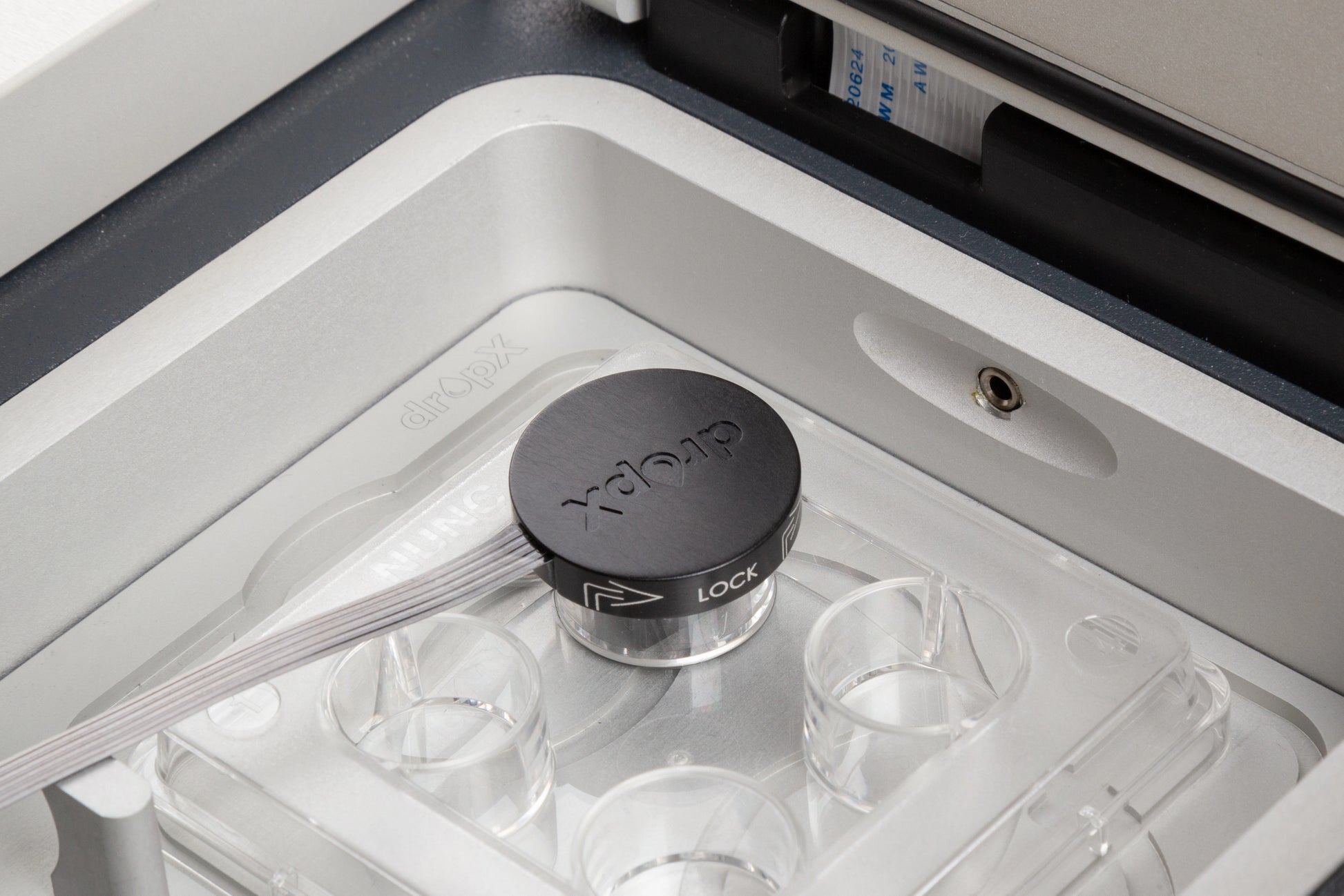

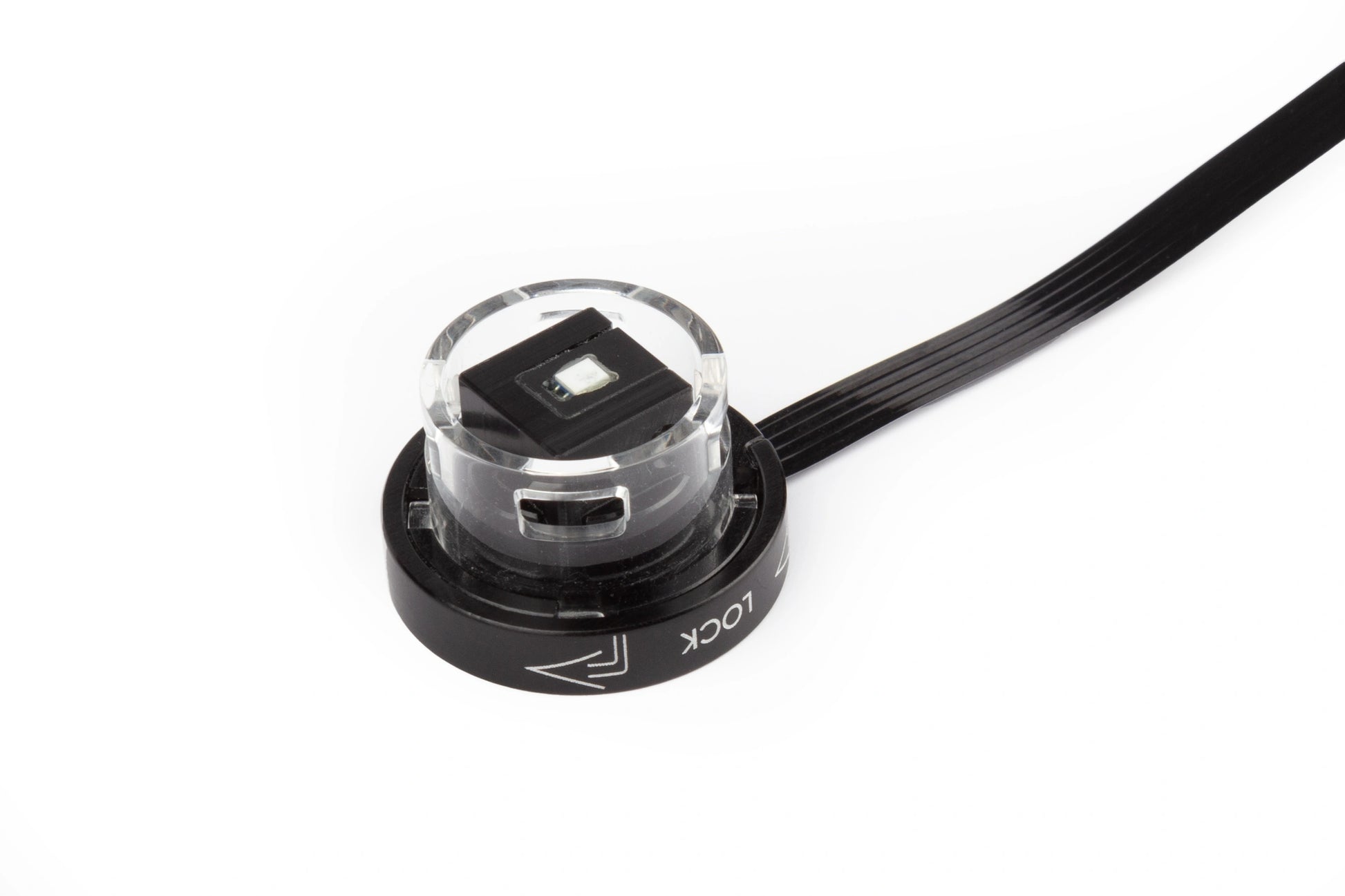

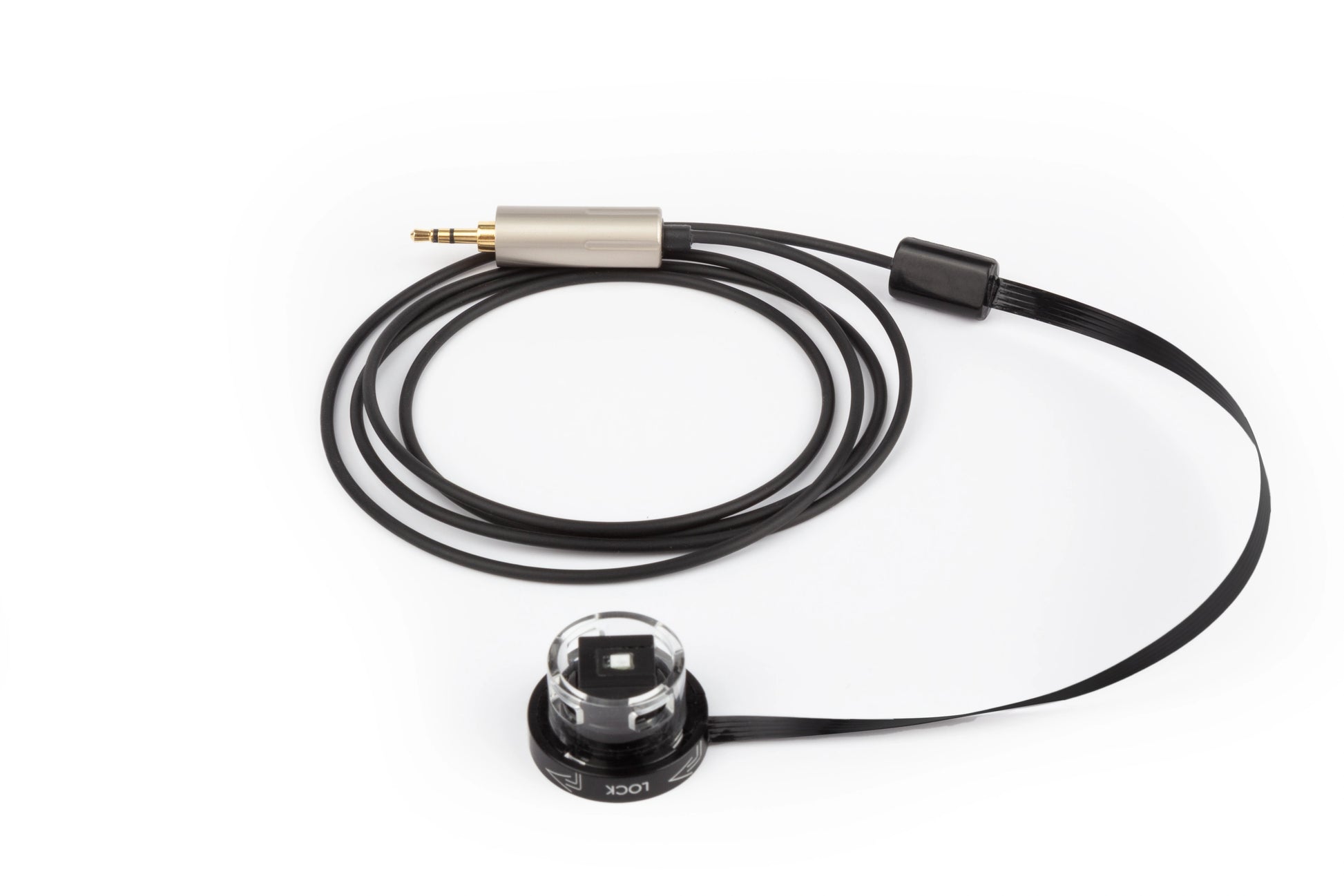

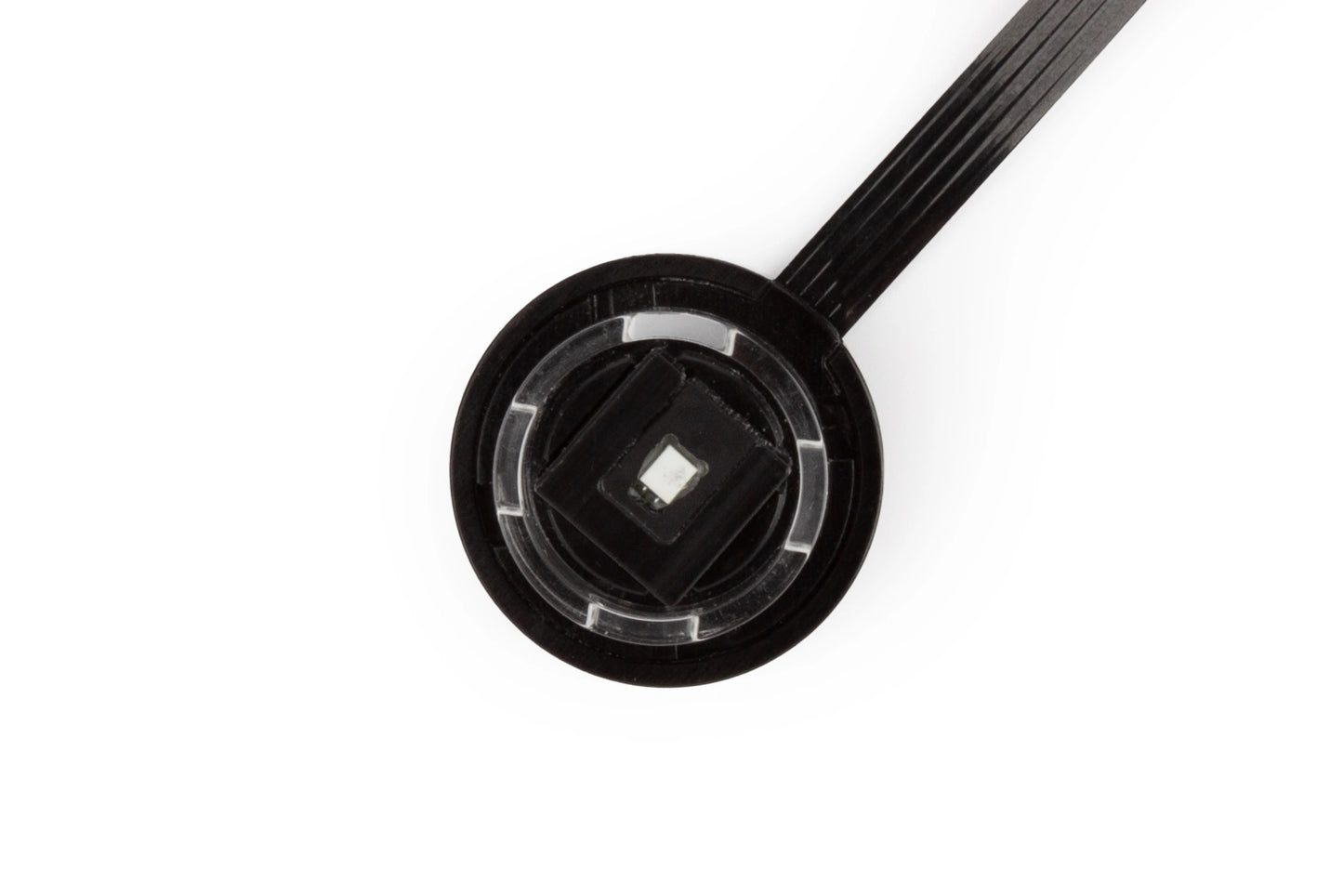

• Drop Probe: Patented technology specifically for accurate droplet measurement within a range of 0–50 °C.

Intuitive User Experience

• Touch Screen Interface: A 4.3” capacitive touch screen with an easy-to-use menu guides you through every operation.
• Real-Time Monitoring: View graphical displays of measurements and set visual and audio alarms for low and high sensor limits.
• Effortless Data Management: Features internal memory and the ability to export data via USB for simplified record-keeping.



Technical Specifications

Feature	Specification
Display	4.3” Capacitive Touch Screen & LED Backlight
Battery Life	Up to 15 hours of continuous operation (10 hours with pump)
Charging	USB-C fast charging with international plug adapters
Body Material	6061 Aluminium with RAL 7016 powder coating
Calibration	Self-calibration for all sensors directly via the device menu
Certifications	CE Certified: EN 61010-1, EN 50270, and IEC 61326-1:2020



What’s Included in the Box?

Your DropX Analyst comes ready for immediate use in a professional carry case, including

• DropX Analyst device
• T-Probe (Surface) and T-Drop (Patented) probes
• 1.2-metre sample hose and vacuum filter
• USB-C cable, charging adapter, and international plug sockets
• Calibration certificate and user manual



Frequently Asked Questions (FAQ)

What is the DropX Analyst?

The DropX Analyst is an all-in-one portable assistant specifically designed for IVF/ART laboratory measurements. It integrates gas and temperature sensing into a single device, eliminating the need for multiple pieces of equipment.

What specific parameters can the device measure?

The analyser is equipped with built-in sensors to measure CO2, O2, surface temperature, and droplet temperature.

What makes the patented Drop Probe technology unique?

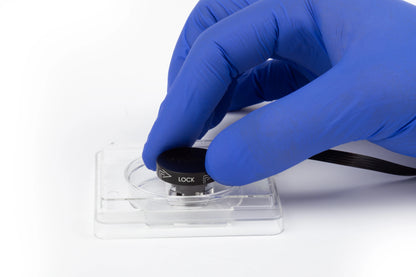

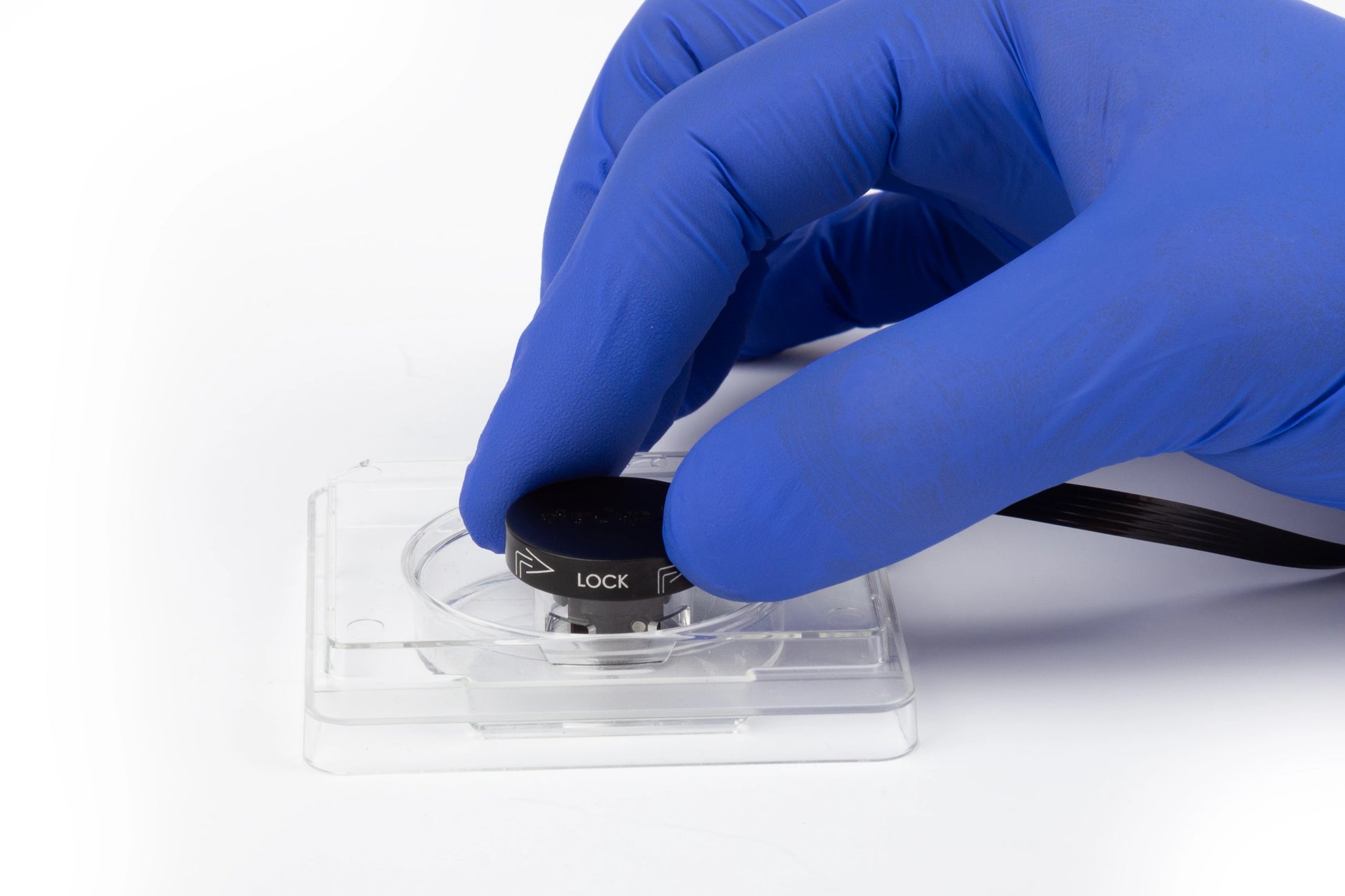

The patented technology allows laboratory professionals to measure the temperature of a droplet precisely without needing to hold the probe. This hands-free method removes the risk of heat transfer from the user's hand, ensuring a more accurate reading.

How accurate are the temperature sensors?

All temperature probes utilize highly sensitive PT-1000 sensors. To achieve the highest possible level of precision, these sensors are gold-coated. The device has a temperature measurement range of 0–50°C.

How long do the gas sensors last?

The sensors are designed for longevity:

• CO2 Sensor: Offers a lifespan of 6 to 10 years and reads data 20 times per second.
• O2 Sensor: Provides a response time of approximately 15 seconds with a lifespan of 3 to 6 years.

How long is the battery life for field use?

The device is designed for continuous operation with a battery life of 12 to 15 hours. If the pump is running continuously, the battery life is approximately 10 hours. It features a USB-C fast-charging socket for convenience.

Can I export measurement data for record-keeping?

Yes. The DropX Analyst includes internal memory for data storage and allows you to export data via USB. It also features a graphical display of measurements and customizable visual and audio alarms for sensor limits.

How do I calibrate the sensors?

The device features a self-calibration mode. Users can calibrate all sensors directly through the easy-to-use menu on the 4.3” capacitive touchscreen. The gas sensors can be calibrated using span gas, Nitrogen, or air.

What quality and safety certifications does the device hold?

The DropX Analyst is CE certified and meets several international standards, including EN 61010-1 (electrical safety), EN 50270 (electromagnetic compatibility), and IEC 61326-1:2020.
